CAT Windshield Skid Steer D Series

$496.49$791.33

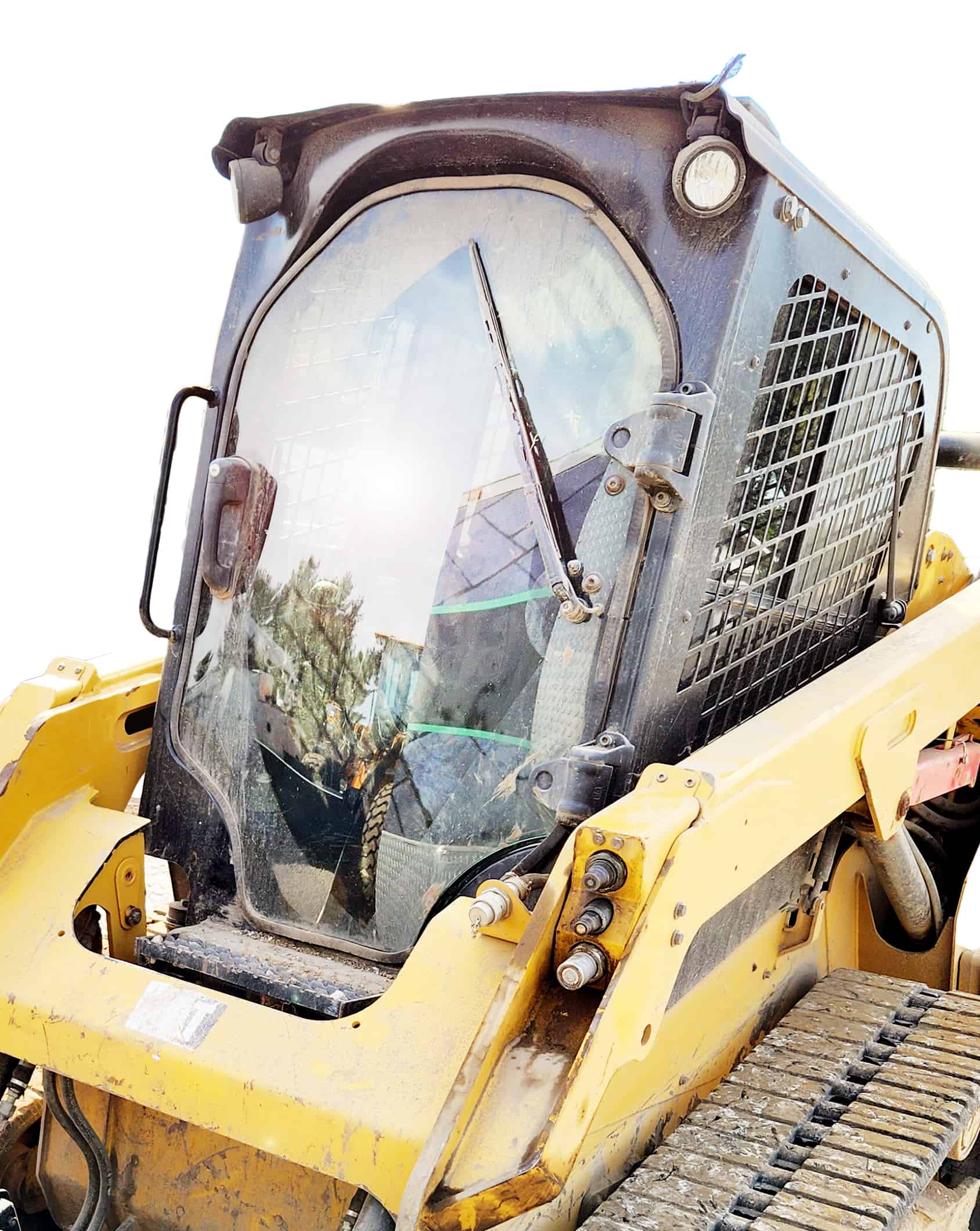

CAT D Series Skid Steer Front Windshield

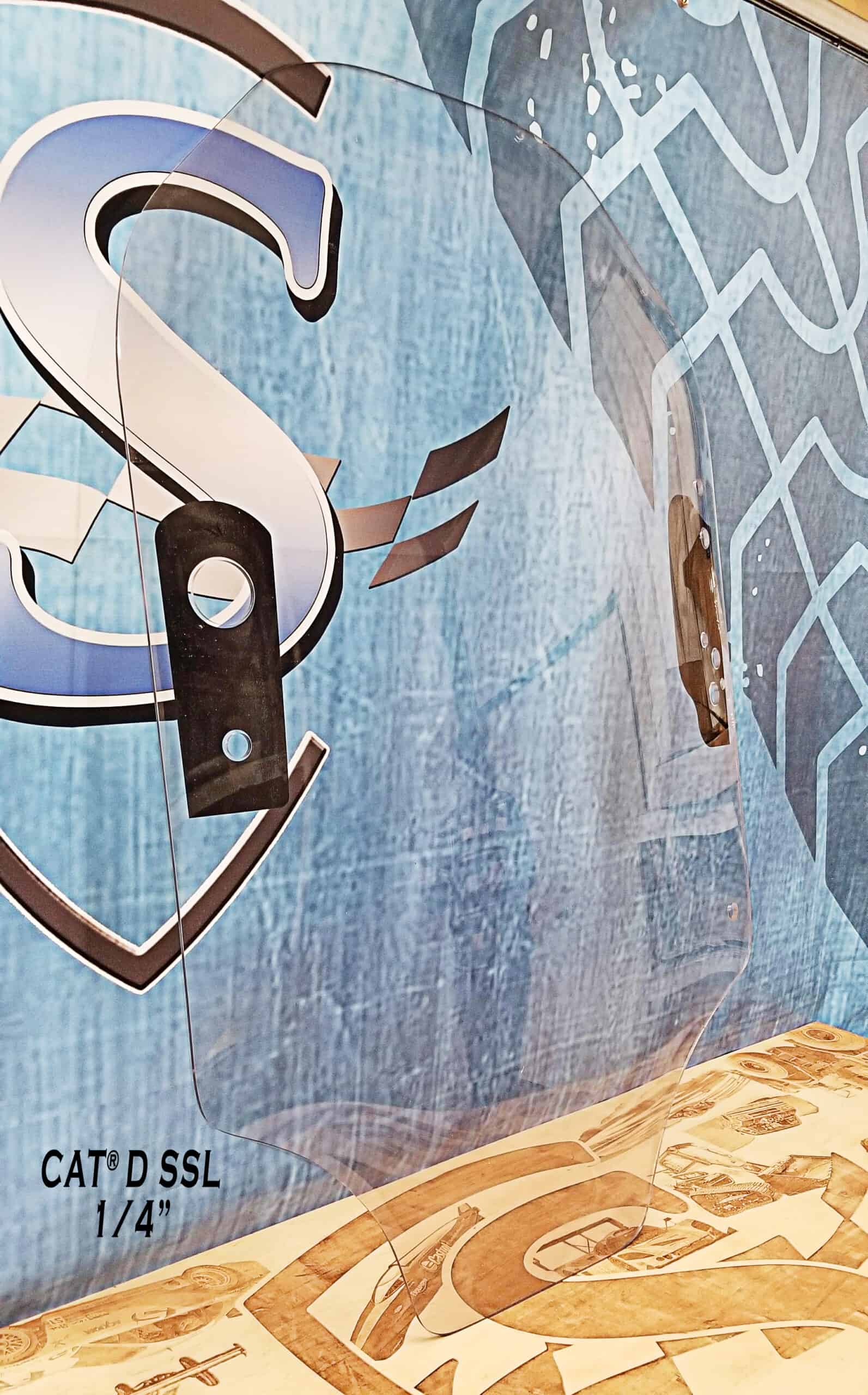

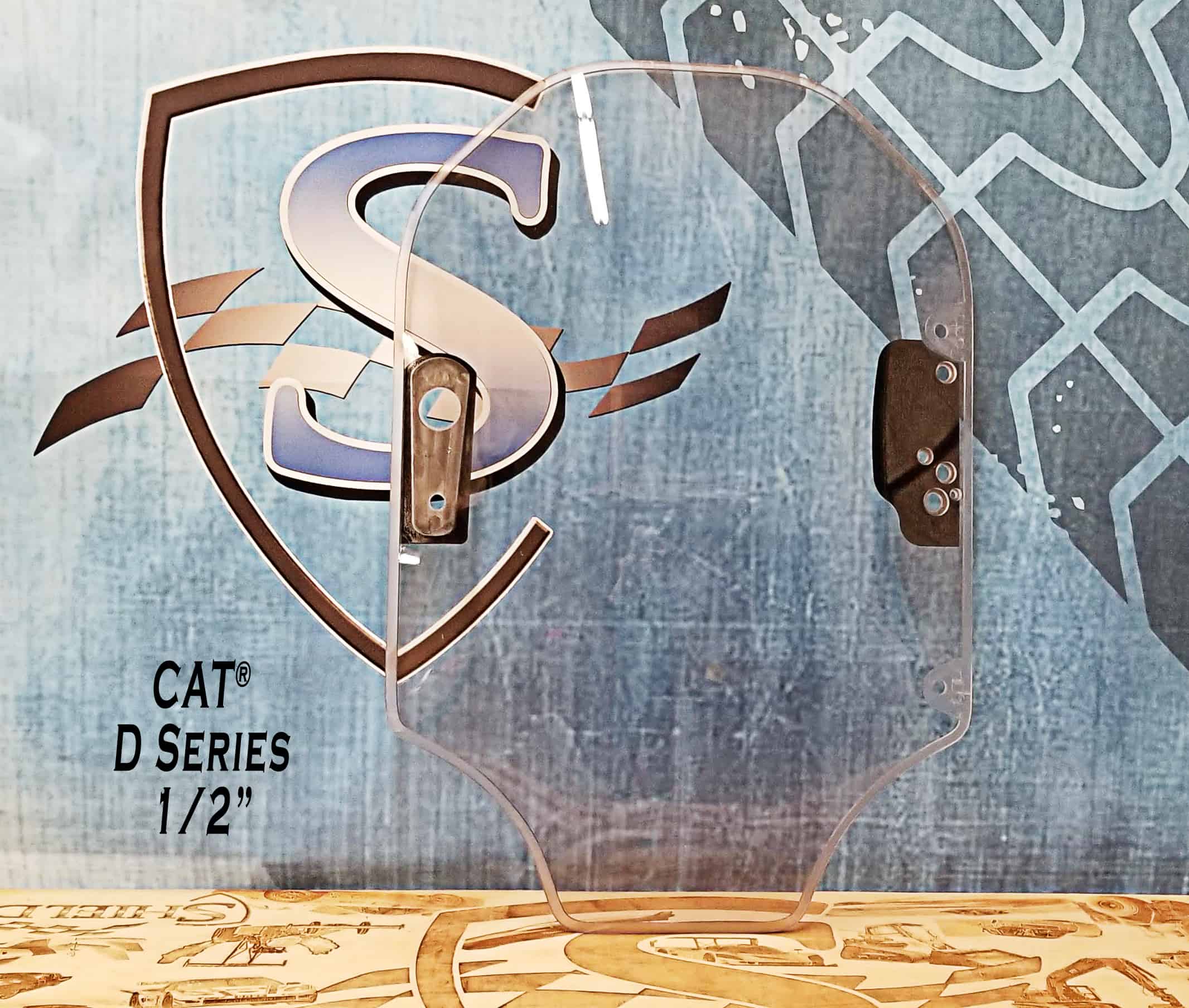

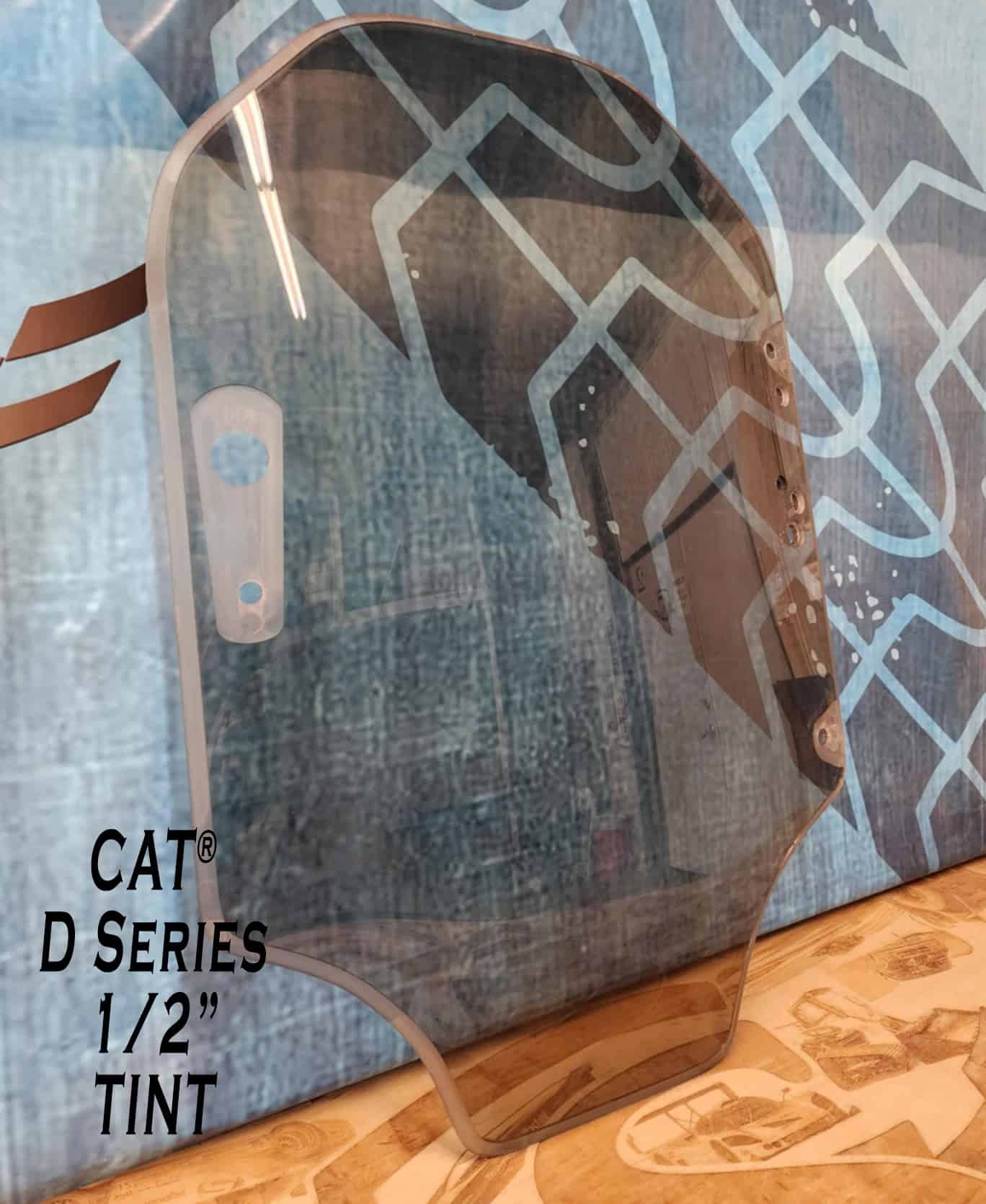

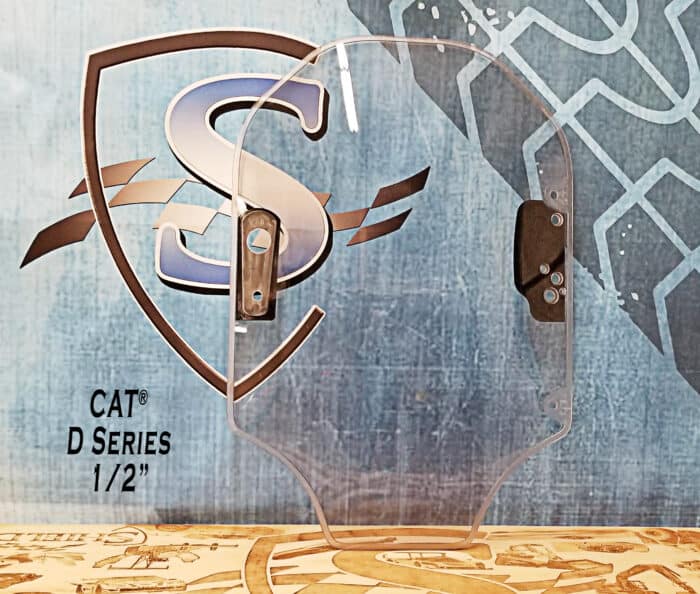

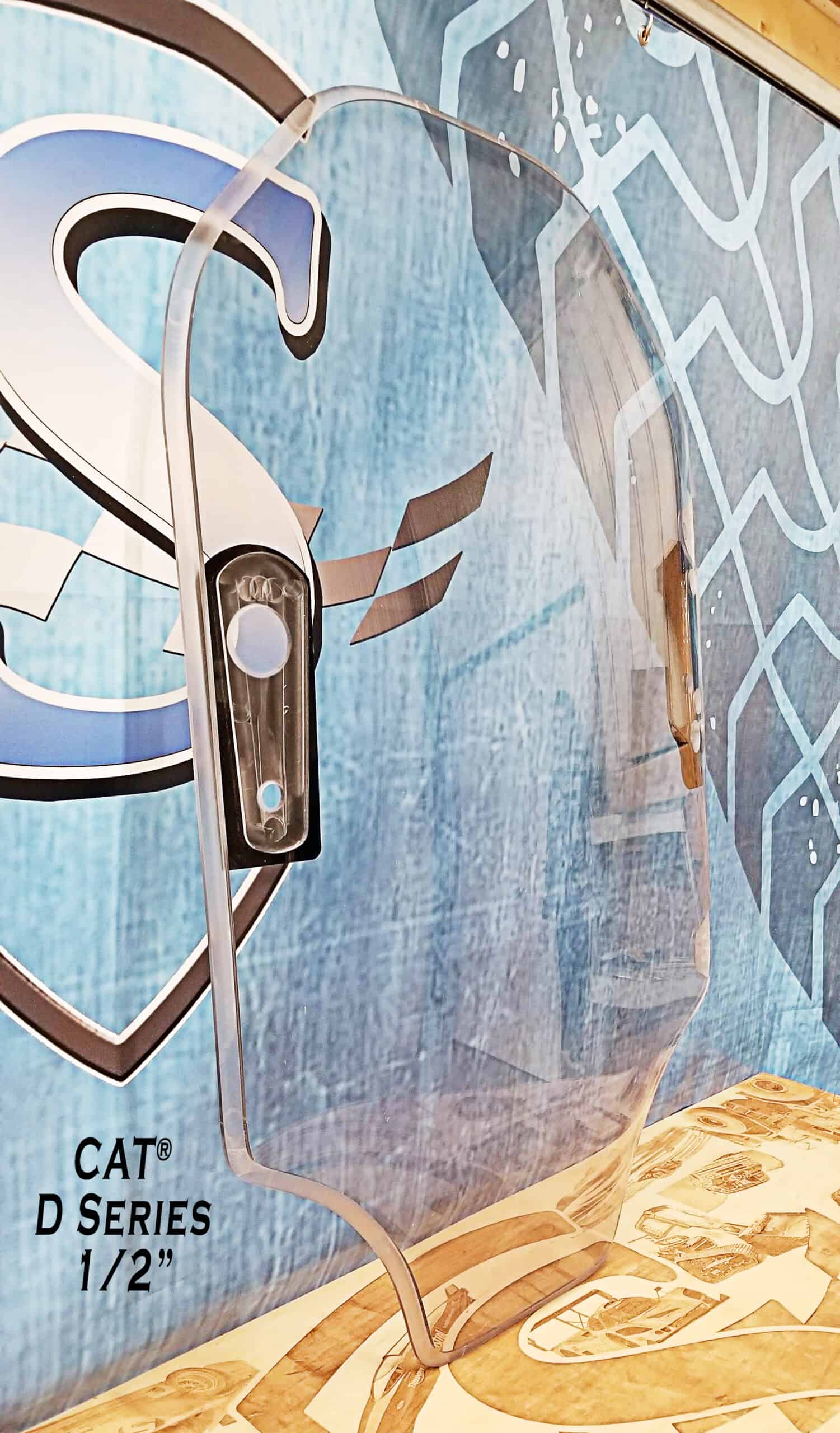

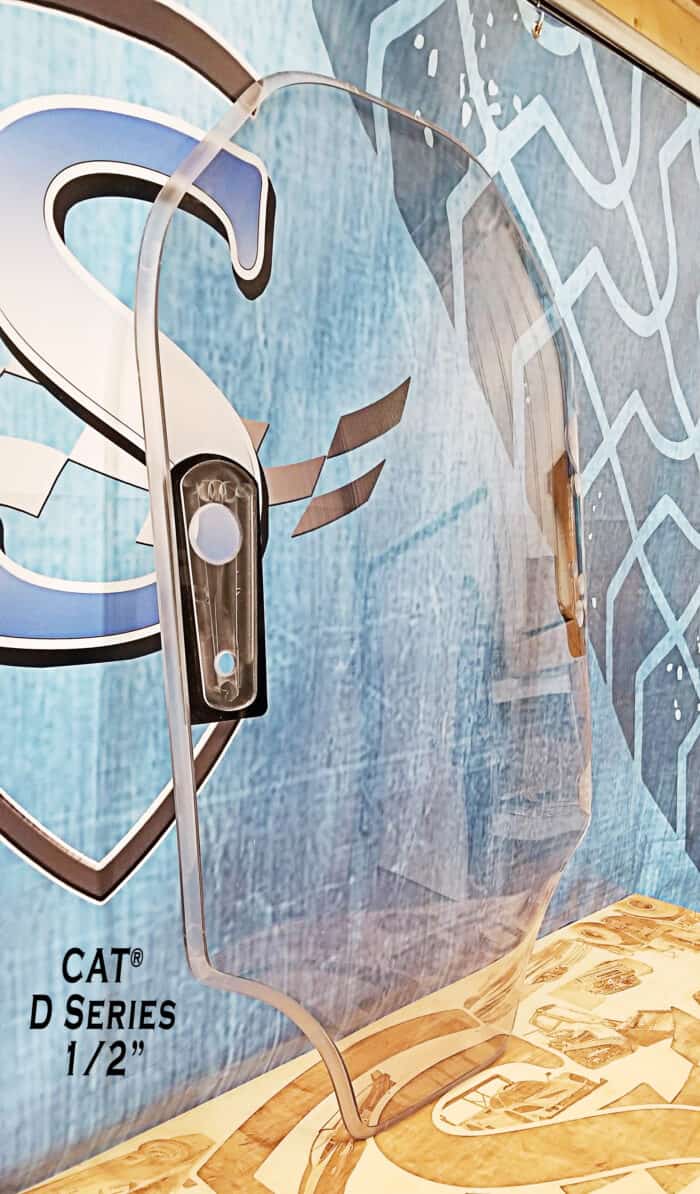

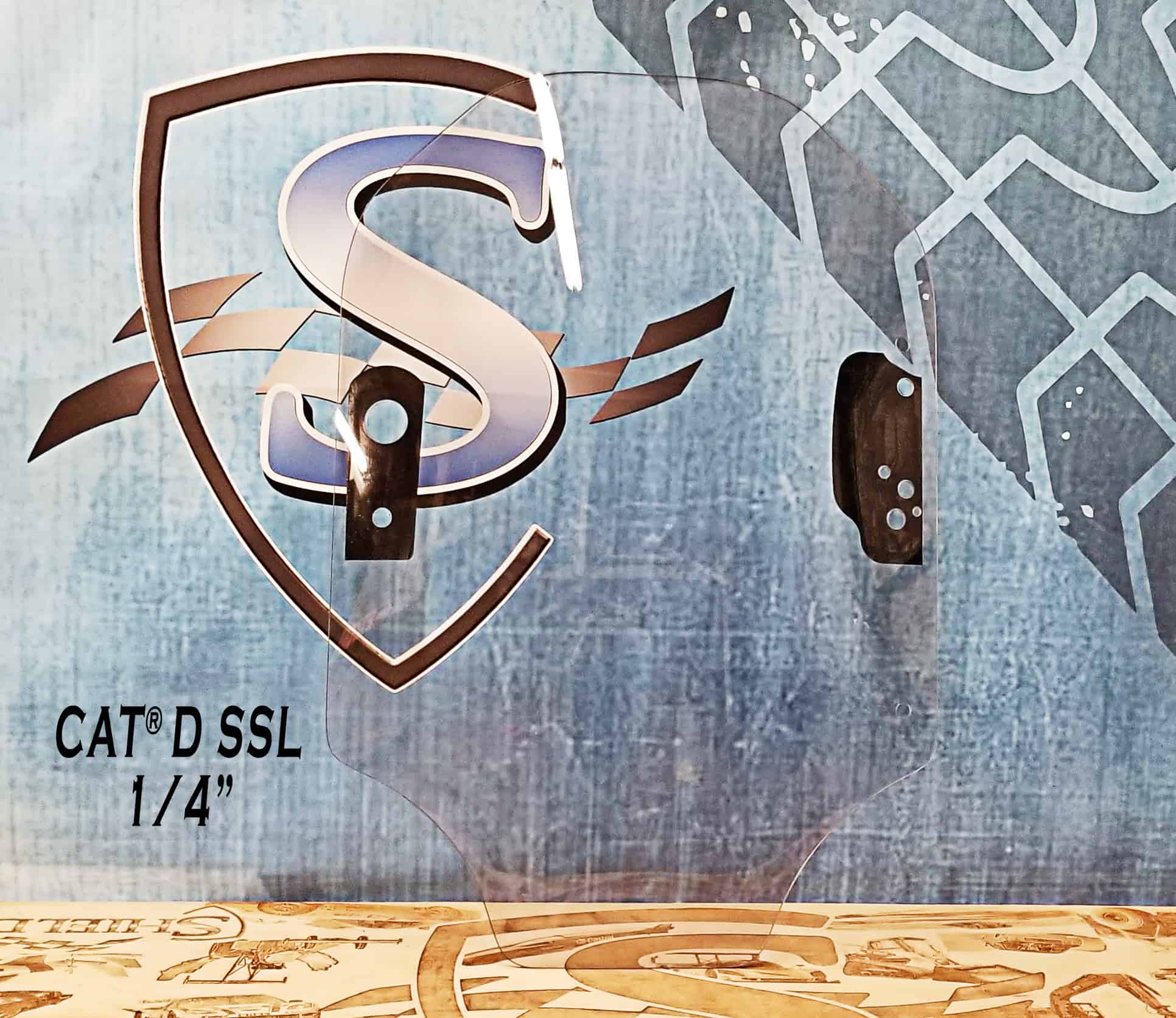

Offered in 1/4″, 3/8″ & 1/2″

Replaces OEM Glass# 345-6230

CLEAR POLYCARBONATE – SUPERCOAT™ BOTH SIDES

FORM ~ FIT ~ FUNCTION of OEM glass with every thickness – no extra hardware needed!

Our lead times below are based on our production schedule and the demand. We may have these in stock. You can text or call 765-913-8121 to check in stock lead times. We are sorry for the inconvenience, but we want to give you the most accurate information.

½” – up to 60 working business days

3/8” – up to 60 working business days

¼” – up to 60 working business days

Not sure what thickness to get? Click here for info.

*

Description

CAT Windshield: Skid Steer D Series – offered in 1/4″, 3/8″ & 1/2″ CLEAR POLYCARBONATE/LEXAN – SUPERCOAT™ BOTH SIDES. Why replace factory glass with SHIELDS® SUPERCOATED™ Polycarbonate for your CAT skid steer windshield? With a SHIELDS® windshield you get the FORM ~ FIT ~ FUNCTION of OEM glass with the Increased Safety ~ Durability ~ Performance of Formed & Coated Polycarbonate. To begin, we cut and form our windows to duplicate the OEM glass (including hardware mounting holes). Then, we mill the edges and holes so that the original hardware can be used from your existing glass application. Finally, we post-coat with our SUPERCOAT™. This gives the polycarbonate nearly the same level of abrasion resistance of glass and the performance advantages below.

1/2 THE WEIGHT, 250 TIMES STRONGER, REDUCED NOISE, INCREASED LIGHT TRANSMITTANCE,  DECREASED SUMMER HEAT GAIN and DECREASED WINTER HEAT LOSS.

Our lead times below are based on our production schedule and the demand. We may have these in stock. You can text or call 765-913-8121 to check in stock lead times. We are sorry for the inconvenience, but we want to give you the most accurate information.

½” – up to 60 working business days

3/8” – up to 60 working business days

¼” – up to 60 working business days

A note from your SHIELDS® team. We want to be sure you are buying the windshield you need!

If you are thinking about 1/4″ our 1/4″ windshield is great for your basic use. If your glass kept you safe, then ours will be perfect (260X stronger than glass). But ¼” polycarbonate is FLEXIBLE. Polycarbonate’s strength comes from its ability to flex. Some applications ¼” will flex and have movement due to how it is installed in your cab. If this will bother you, we recommend looking at our 3/8” or ½” thicknesses.

If you have questions about what thickness you need, give us a call! 1-800-554-7527

Many people refer to polycarbonate as Lexan and Makrolon which are brand names and Plexiglass, but this is acrylic. Others may refer to polycarbonate as, safety glass, demo door, and other forms of glass. Education is key when shopping for polycarbonate windshields. To learn more about polycarbonate and what thickness you should buy, check out our blog below! To learn more about polycarbonate check out our blog! View other skid steer windshields Challenger is a Registered Trademark of Caterpillar Inc

Additional information

Size

.25, .375, .5

How did you hear about us?

Commercial, Con Expo, Online Search, PRI, Radio, Referral, Repeat Customer, Social Media, TV Commercial, Utility Show, YouTube
